How does REP change the default X-Plane 12 Cirrus SR22?

The Reality Expansion Pack acts over different aspects of the Cirrus SR22. Here are some:

  • The flight dynamics are replaced to match the real world data by Cirrus. This is the starting point of every REP project. The correct airfoils, together with the plugin, will give the right dynamics to the airplane (right takeoff and landing speeds and attitudes, right stall speed and so on).
  • The custom engine model gives a very realistic representation of the real-world Continental TN/IO-550-N in two variants: normally-aspirated and turbo-normalized.
  • The onboard systems and the failures are simulated by the 120.000+ lines of code contained in the plugin. Many of the features listed in the paragraph below are related directly to this point.
  • The extra tools such the maintenance hangar, the kneeboard, the weight and balance, and the walkaround
  • Many 3D objects are added to complete the original model: the tie-downs, the chocks, the preheater and so on.
  • The sounds effects are greatly enhanced by the plugin providing things such the wind sounds, the unique stereo touch down sounds, the amazing startup sounds etc.

REP for X-Plane 12 Cirrus SR22 at a glance

Ultra Realistic Flight & Ground Dynamics

  • Realistic stall speeds & behavior
  • Realistic climb speeds
  • Realistic cruise speeds
  • Realistic Weight & Balance
  • Realistic taxi behavior

Complex Damages System

  • Triggered by the pilot actions
  • Based on real-world data
  • Target every system in the aircraft
  • Meant to teach you how to correctly manage an airplane
Economic System

Interactive Walkaround

  • Cockpit checks
  • Lights checks
  • Aileron, rudder, elevator, and flaps check
  • Tire check and choks removal
  • Tie-down removal
  • Pitot tube check
  • Engine cowl check

Interactive towing

  • Push, pull and steer using the joystick
  • Towbar simulation

Realistic TN/IO-550-N Engine Logic

  • 100% custom engine model that replaces X‑Plane’s default
  • Choose between normally-aspirated IO-550-N and turbo-normalized TNIO-550-N using the maintenance window
  • Correct fuel consumption
  • Oil System:
    • Realistic oil viscosity
    • Interchangeable oil type
    • Oil pump failures
    • Realistic oil filter
  • Injection Fuel System
  • Realistic fuel pump behavior
  • Realistic fuel filter
  • Starter
  • Realistic startup procedure
  • Automatic startup procedure available to help newbies
  • Realistic engine temperatures
  • Fuel Flooding simulation
  • The engine parts are damaged if not managed correctly

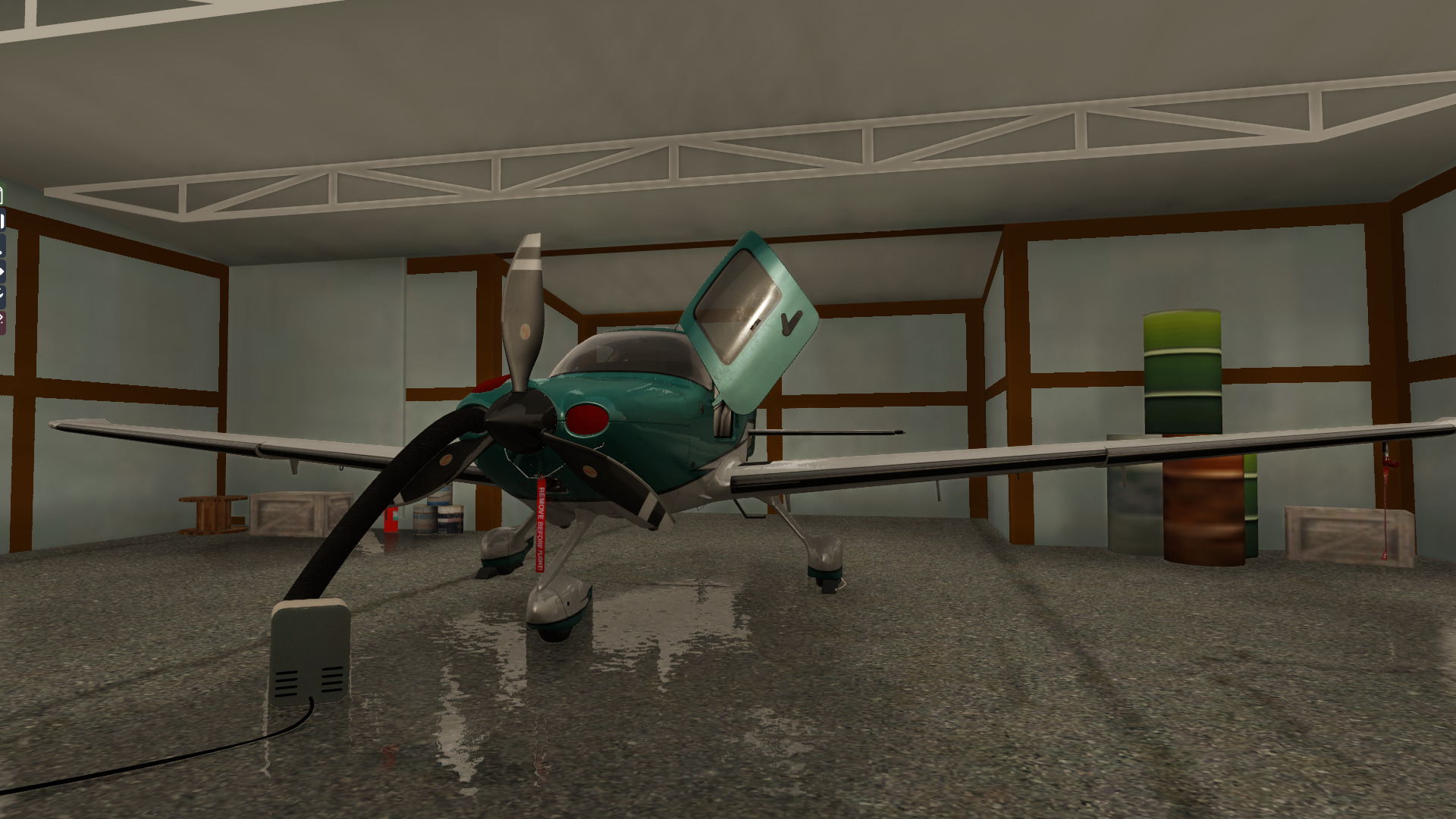

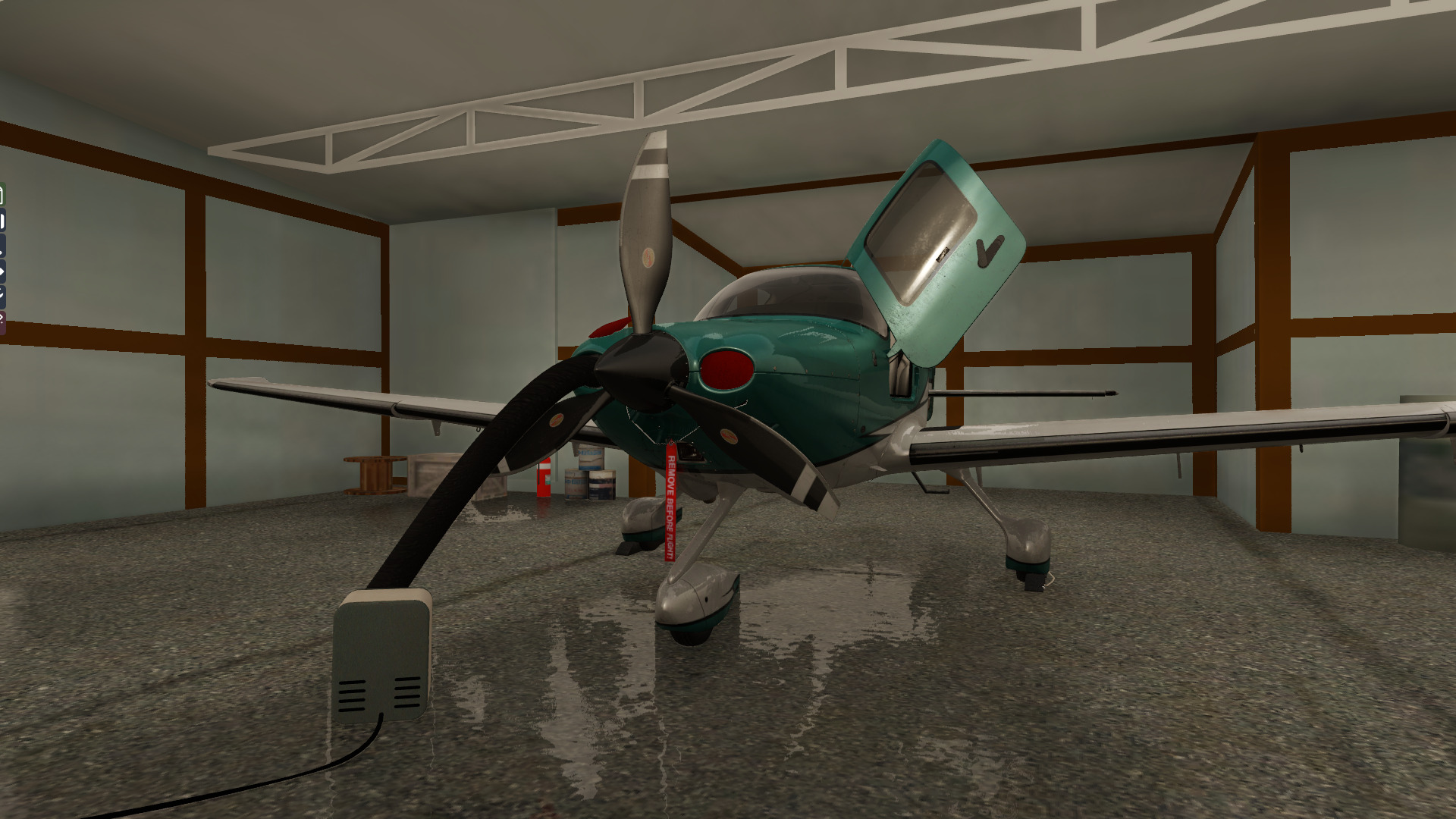

Engine Preheater and Winterization Kit

  • The engine may be warmed up upon start with the provided electrical heater
  • Once activated, the electrical heater runs even when you close the simulator

Realistic Landing Gear

  • The landing gear is damaged by hard landings
  • The brakes and tires are damaged if not managed correctly

Developed with love

  • Coded by real pilots

Electrical & Avionics System

  • Realistic Battery behavior
  • The battery can be disconnected if the airplane is not used for some time
  • The avionics are damaged if on when the engine starts/shuts down

Native Virtual Reality Support

  • Complete support of new X-Plane SDK 4.0
  • X-Plane 12 native
  • Native VR support

Learn with the in-flight tips

  • A noninvasive tip with a suggestion about the conduct of the flight  is shown when you are not flying the airplane properly
  • A noninvasive tip with a suggestion on how to recover the problem is shown when you damage the airplane

Custom simulation of Hypoxia

  • Tunnel vision
  • Hard breathing

Stunning sounds

  • Realistic engine clicks and stutters
  • Real starter sound
  • Unique dynamic ground roll sounds
  • Fuselage wind sound
  • Landing gear wind
  • Independent touch down sounds
  • Real avionics sound

Weight & Balance Tool

  • Load the airplane and check the C.G. and weight limits at takeoff and landing
  • The airplane behavior changes when the C.G. moves

Popup Kneeboard

  • Complete normal operations checklist
  • Complete emergency operations checklist
  • Complete reference tables (speed, fuel consumption etc.)
  • May be shown/hidden with mouse gestures

Simulation state saving

  • Every single switch and lever position is restored when you reload the aircraft
  • The battery may discharge if you leave it on and then close X-Plane
  • When X-Plane is launched, the engine and oil temperature are restored based on the time passed

Maintenance Hangar

  • Engine maintenance tab
  • Electrical systems maintenance tab
  • Landing gear, brakes & tires tab

HeadShake Integration

  • REP drives HeadShake to simulate the correct vibrations of the engine

Very easy on FPS

  • Written in C++ with no compromises

Extended features list

Developed by real pilots

The SimCoders.com team is made by real pilots. We code all our own flight experience into REP and try to provide you the most amazing experience in X-Plane.

Realistic and complex engine logic

The engine is meticulously reproduced. The oil system, the fuel system, the starter, the fuel pump, the electrics, and all other components are simulated one by one, basing on the handbook data.

You can change oil type basing on the current season, check the fuel filter, the cylinders compressions and so on. Every single part is simulated basing on real-world data.

Real Cirrus systems

This package is compatible with both the analog and G1000 version of the Cirrus SR22.

Among other systems, you find the landing gear system, the braking system, the electrical system, and the avionics. Each one is reproduced basing on the pilot operating handbook and on our personal experience.

Ultra Realistic Flight & Ground Dynamics

A custom flight dynamics engine is replacing part of the internal X-Plane engine in order to enhance the realism of the simulation. You will experience realistic speeds and fuel consumptions at every power setting.
The correct drag during the landing gear operation is realistically simulated.

The aircraft uses the correct distances to takeoff and landing and reaches the correct vertical speed during the climb.

The ground dynamics are enhanced by realistic crosswind behavior.

Damages System

If you are a reckless flier you will experience many failures based on the real Pilot’s Operating Handbook.

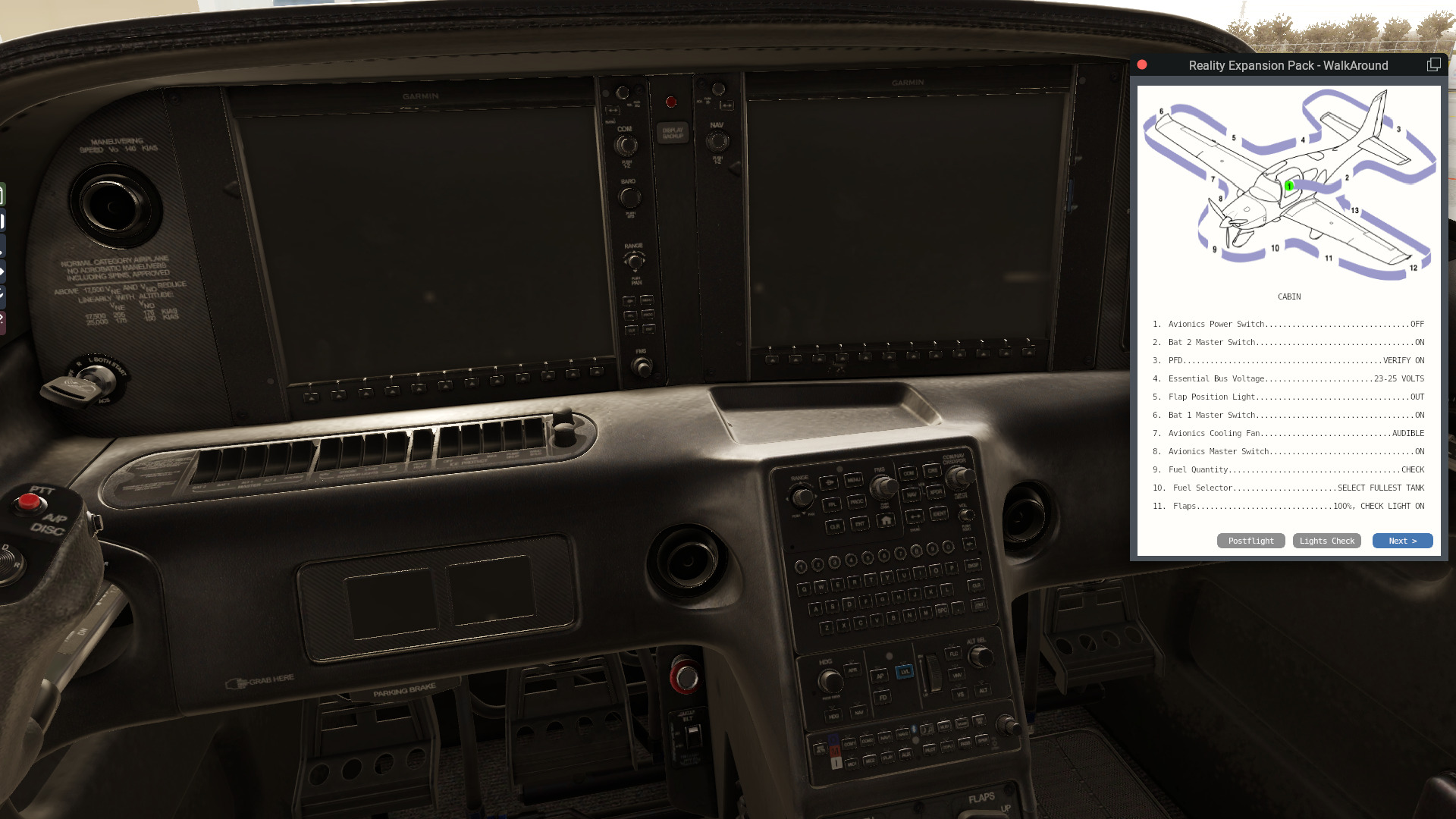

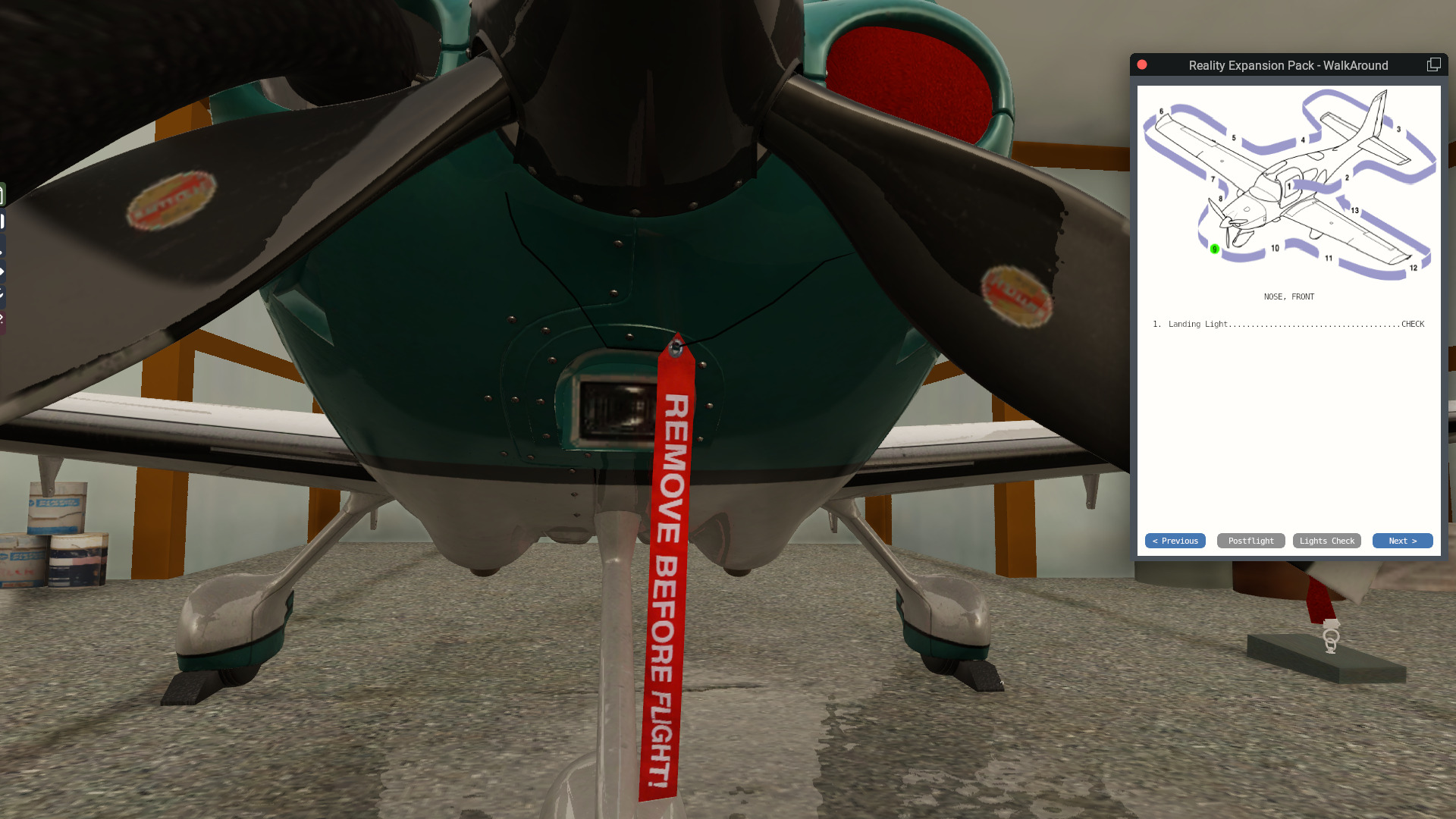

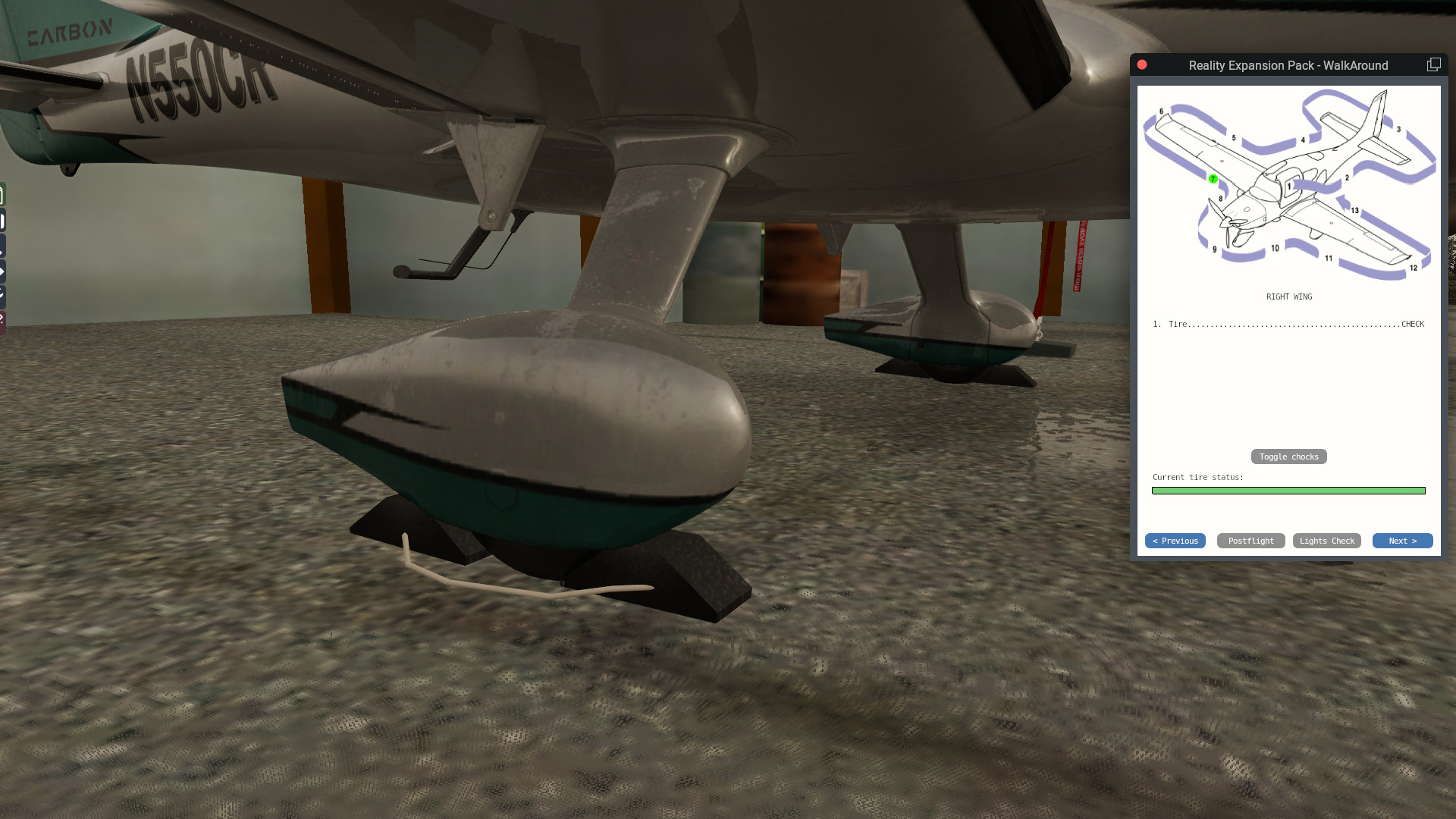

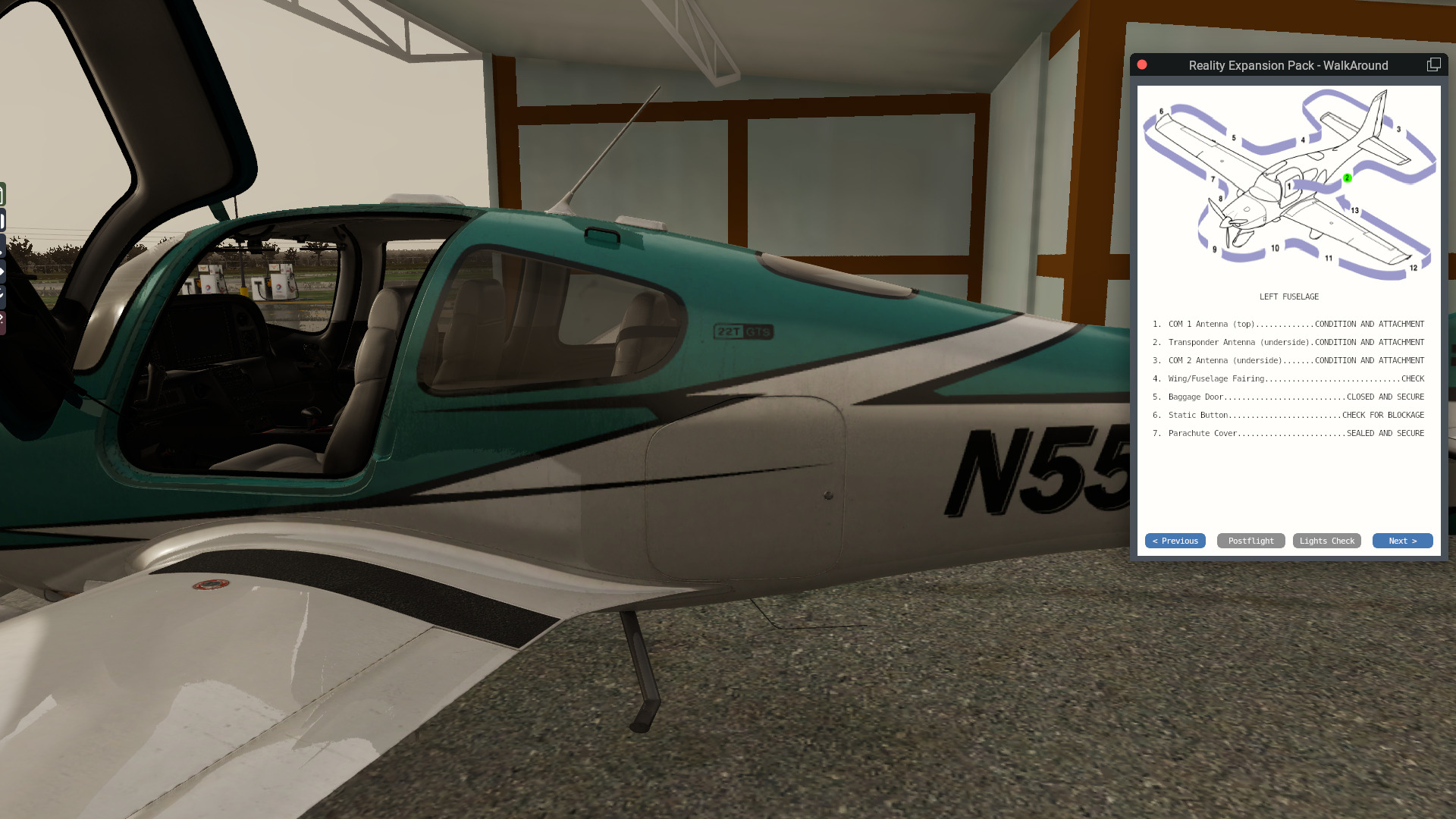

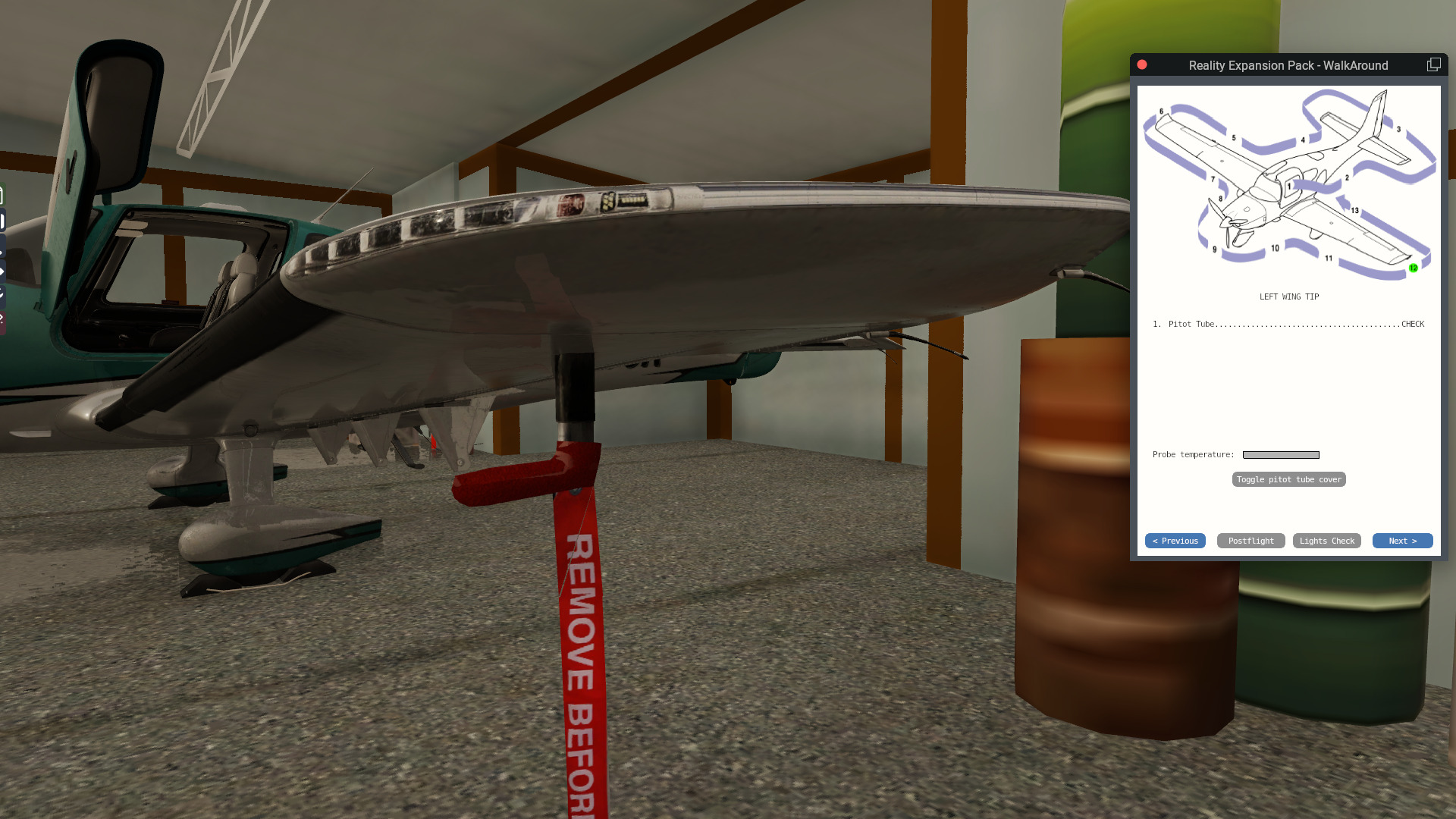

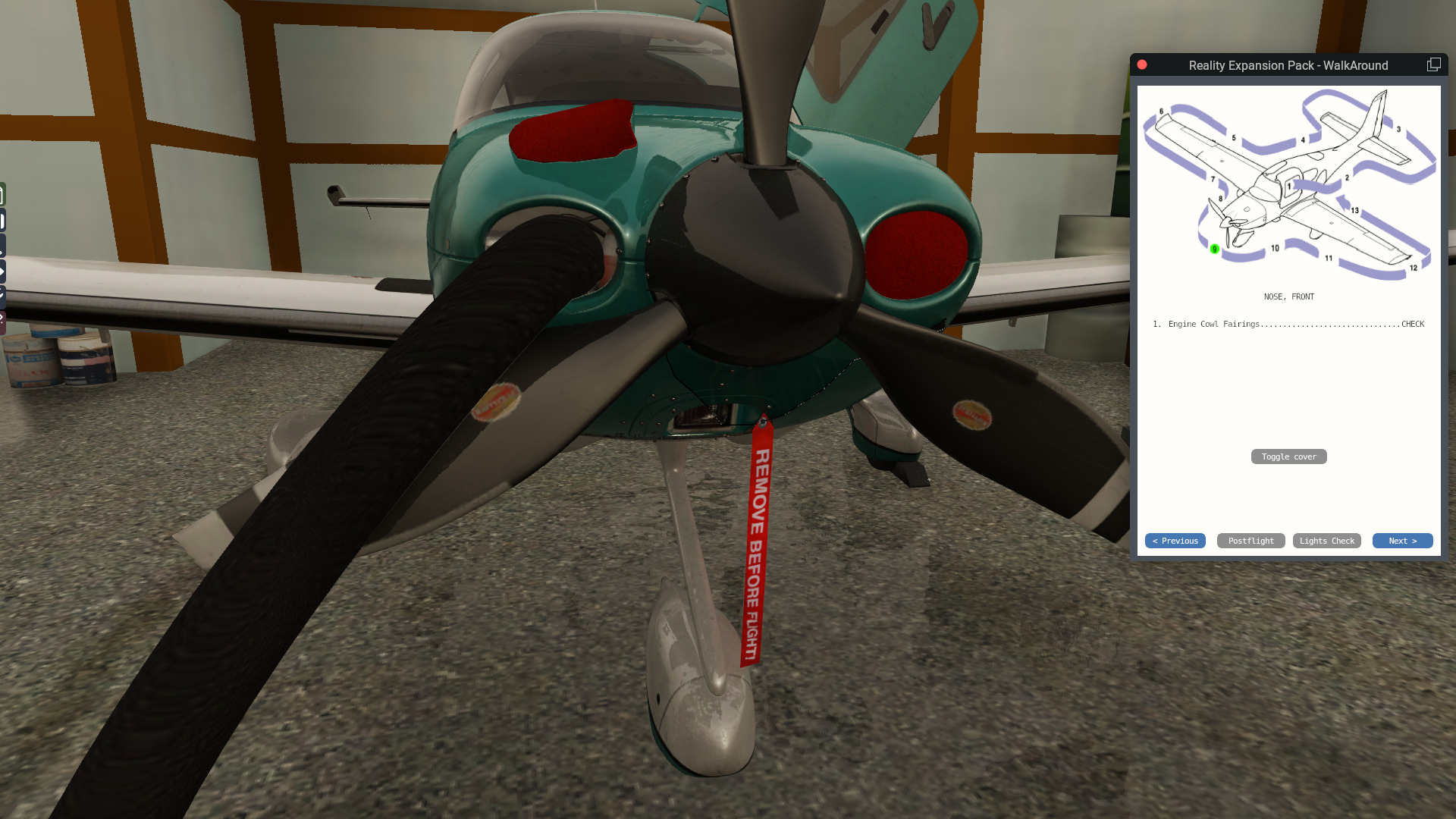

Interactive pre-flight checklist and walk around

Do your ground pre-flight checks using the interactive walk round module. Check the
wheel status, the elevators, the aileron, and the rudder. Remove the chocks and the tie-
downs.

Towing system

Tow your airplane in and out of the hangar or move it along the airport using the
integrated towing system. A towing bar will help you steer the nose wheel.

The software will also teach you how to avoid those failures through many custom messages that may be shown during flight.

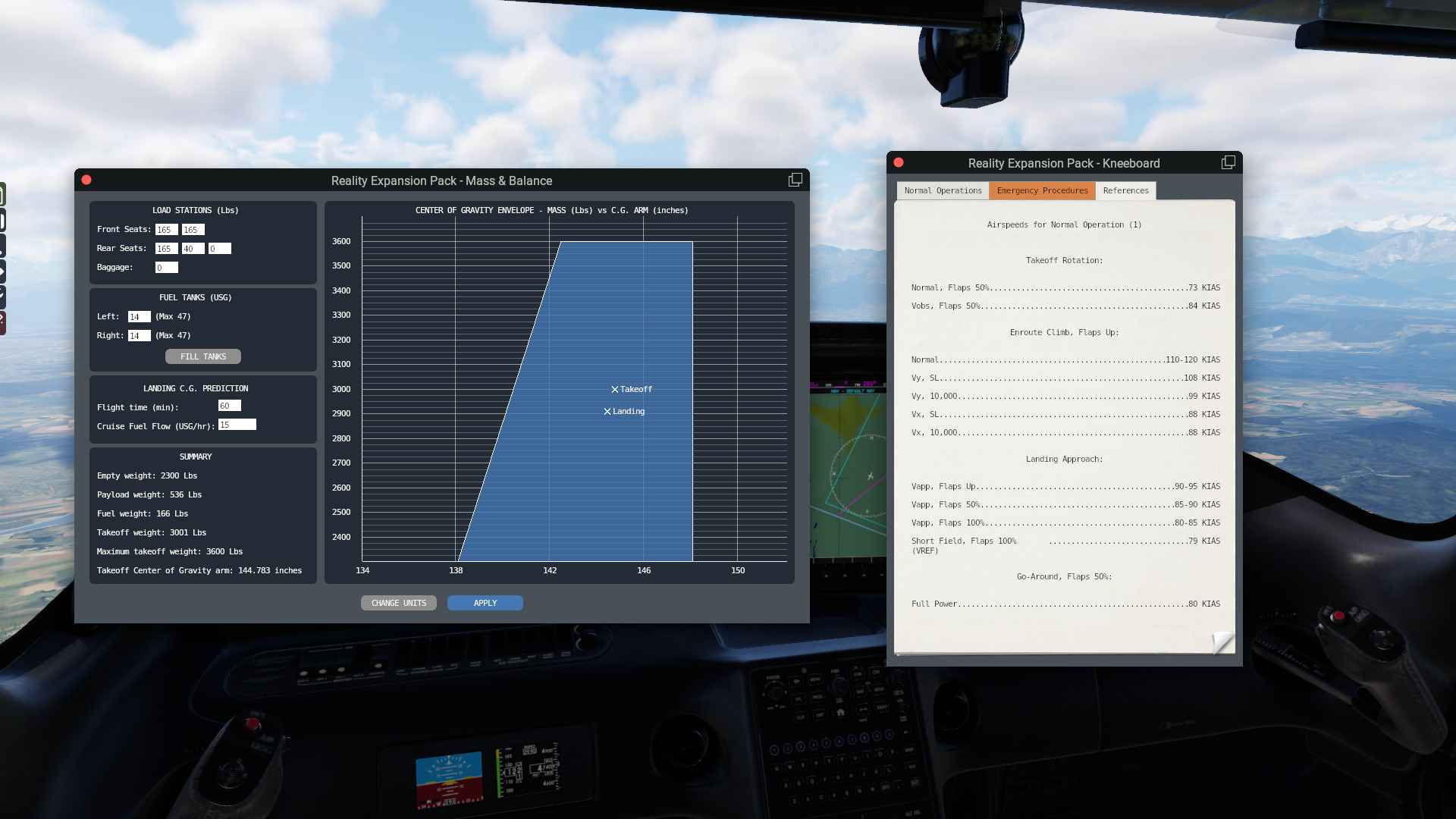

Weight & Balance tool

Checking the Weight & Balance is a very important operation that real pilots do every time they board an aircraft.

Thanks to the W&B tool you can load your airplane and check that the plane’s weight and center of gravity are within limits. The changes affect the way the airplane flies.
With REP you can now see how the Center of Gravity of the C172 moves back while burning fuel.

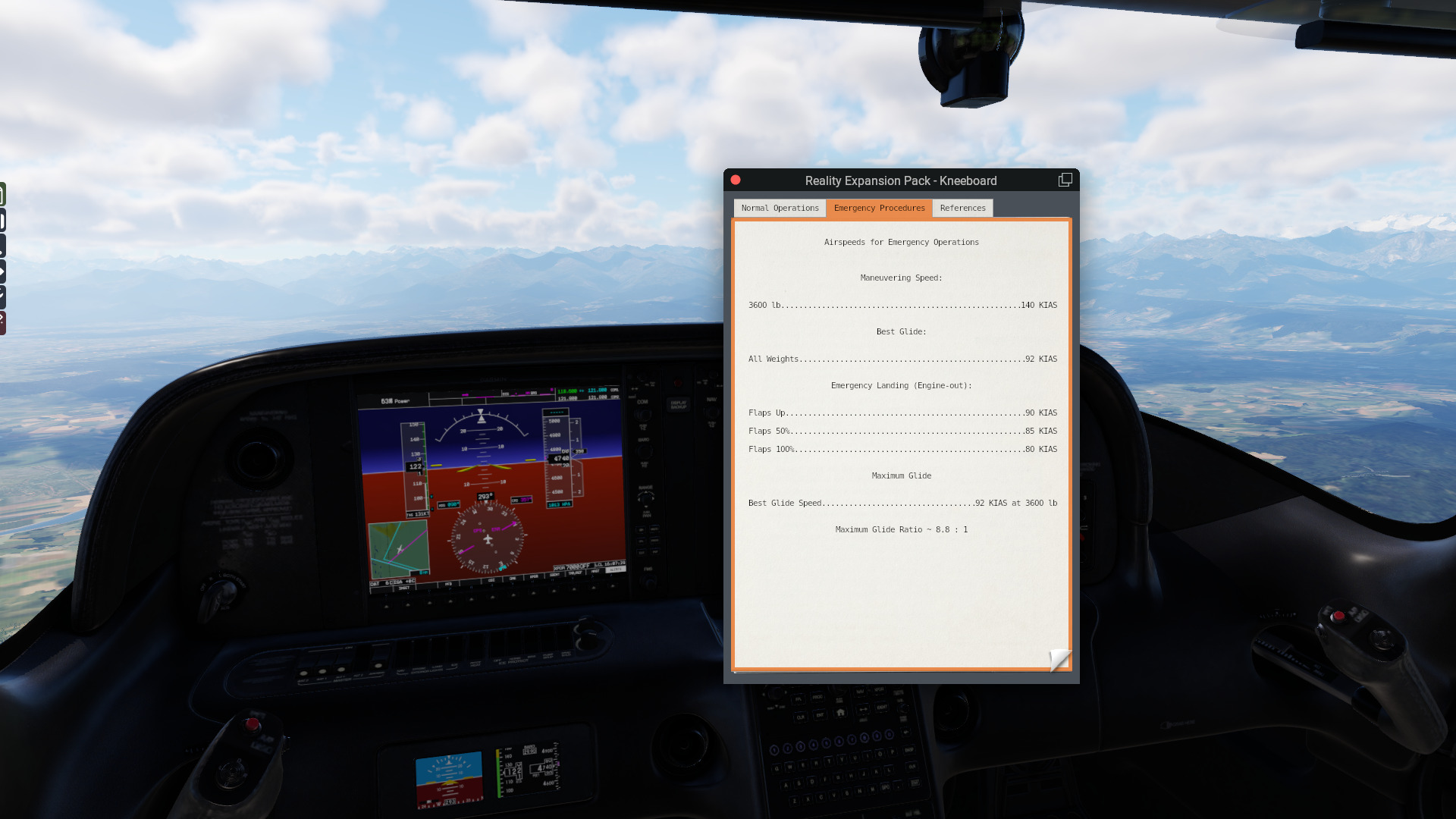

Popup kneeboard

Follow the real Normal Operations Checklists to fly the airplane. Use the Emergency Checklist when you experience a failure. Plan your flight basing on the real performance tables.

The popup kneeboard is easy to use and contains all the information you need to conduct your flight.

Living Airplane

The airplane saves its state and restores it when you restart the simulator.

An example? After loading your airplane into X-Plane, it will have a warm engine depending on how much time has passed from the last session.

HeadShake integration

If you install HeadShake v1.5 or higher in your system, it will communicate with REP to
extend simulation realism.

REP will drive HeadShake to simulate the vibrations of the real TN/IO-550-N engine. Using
this, you will be able to run the engine at the most comfortable RPMs.

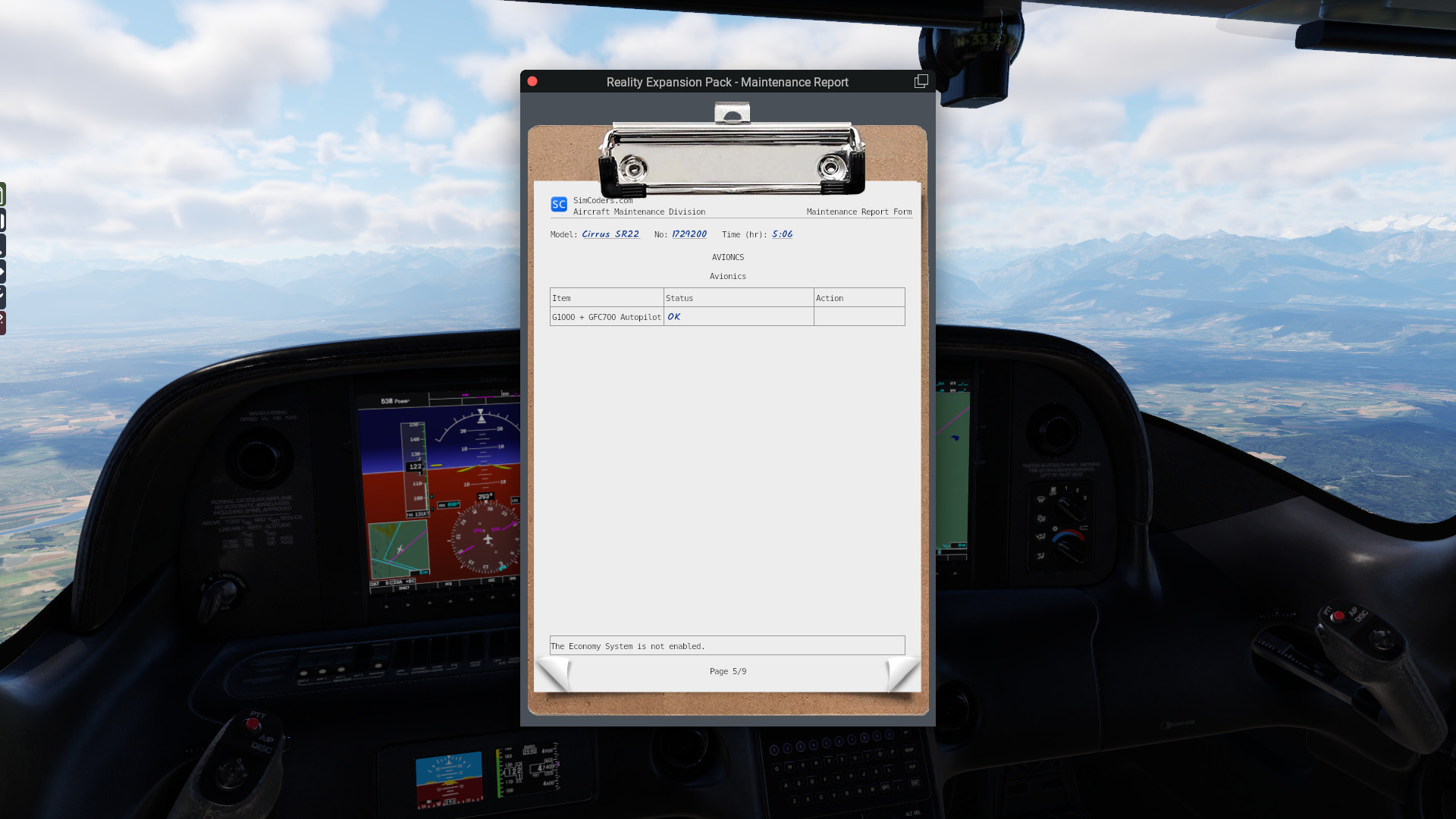

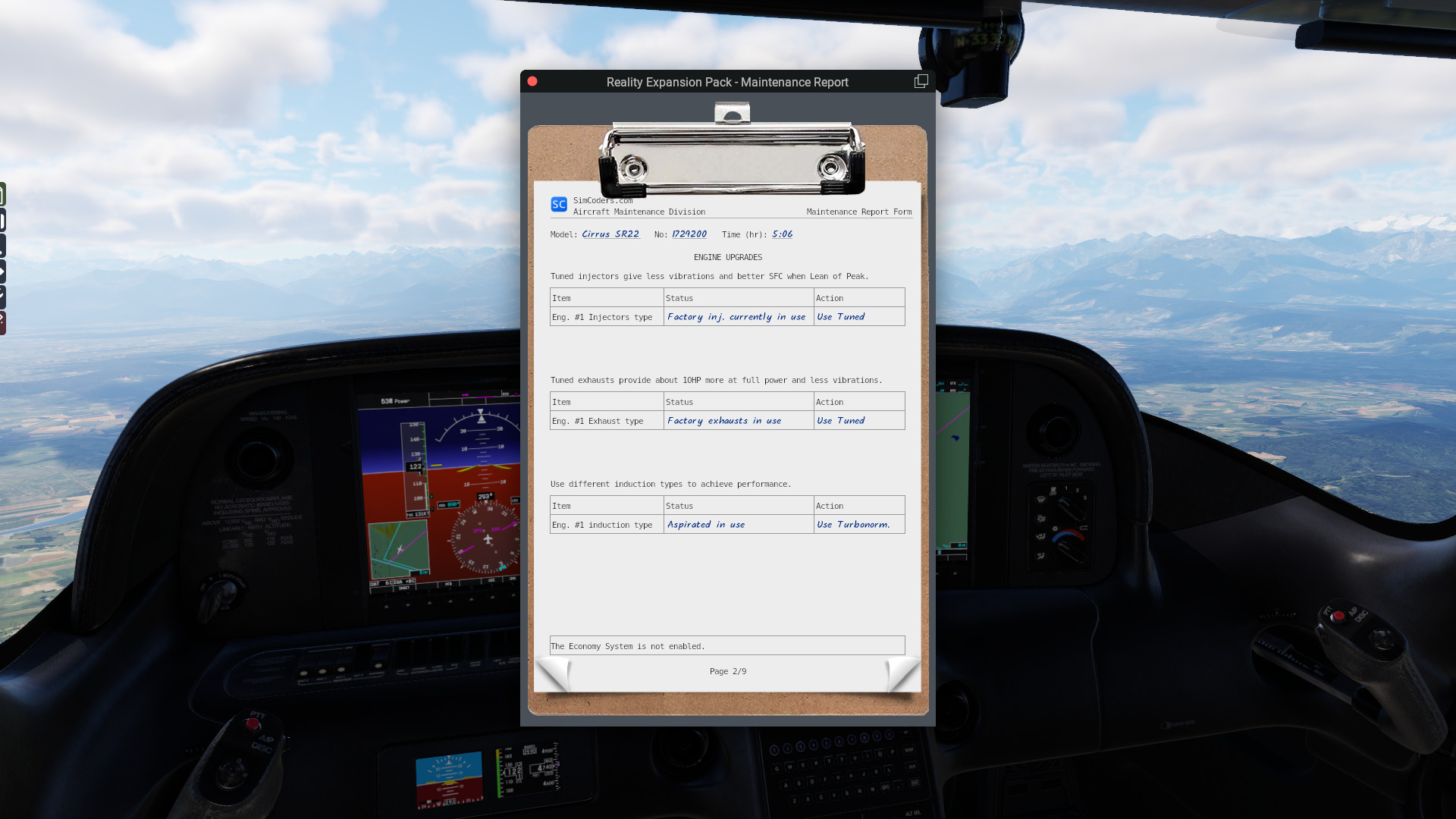

Maintenance Tool

You can perform the maintenance of your aircraft using the included maintenance tool (also called Hangar View). Change the oil, check the cylinders status, recharge the battery and more.

Realistic sounds set

Feel the wind flowing around the fuselage, the landing wheels screech during a hard landing, the brakes squeaking and many more. The included sounds are recorded onboard a real aircraft.

Custom settings window

A settings window allows you to enable or disable some of the software’s features.

And much, much more!

You will discover something new about the Cirrus SR22 every time you jump onboard it!
